AT Mini Matrix Ctrl

Dec 10th, 2013 by

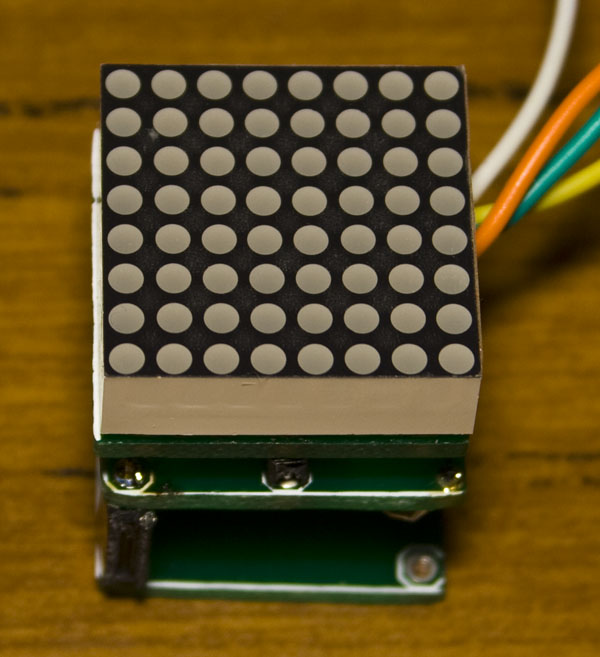

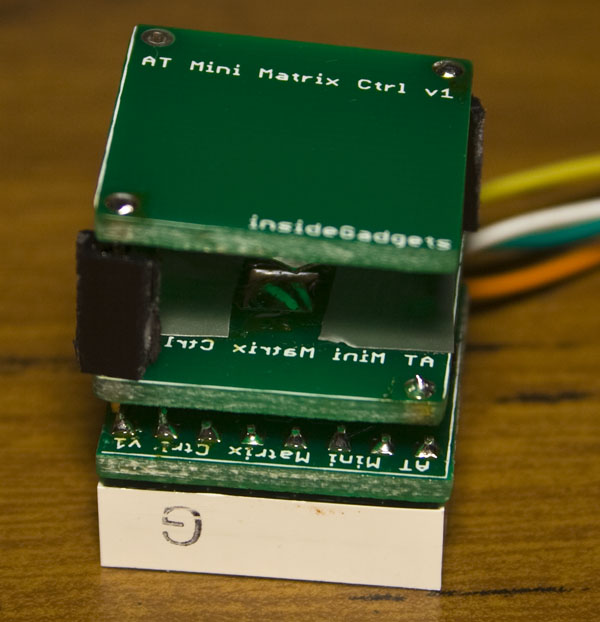

A small 20mm 8×8 LED matrix controlled by an 32pin TQFP ATmega48/88 with a 32.768KHz crystal that’s battery powered to display some animations or text on specific dates such as on new years eve or on a birthday.

IMG_2961 IMG_2965 IMG_2966

https://www.youtube.com/watch?feature=player_embedded&v=4Qi4KpzdbCY

Specifications
PCB Board: 20mm x 20mm x 3 PCBs
Voltage: 2.7V to 5.5V
Current used when awake: 2.5mA
Current used when sleeping: 0.75uA
Battery: CR2032


Download

v0.5 (5 Jun 2013)
– Added PIR module so it only turns on when people are around

v0.4 (11 May 2013)
– Allows for us to save space to store text without using animations and have the text scroll right to left

v0.3 (5 May 2013)
– Small code changes

v0.2 (30 Mar 2013)
– Added 32.768KHz crystal, keeping track of the date/time and using PGM to store the LED animations

v0.1 (24 Feb 2013)
– Initial Release


Referenced Posts

Part 1
Part 2
Part 3
Part 4
Part 5

.
