I’ve had a small solar panel now with a voltage of up to 18V (up to 83mA current) for a little while so it’s now time to make a small solar power charger to recharge 12V batteries. Previously I had a solar panel with a voltage of up to 14V which didn’t cut it when the sun was shinning on it for a few minutes; I found the voltage dropped and it wasn’t enough to recharge my 12V batteries.

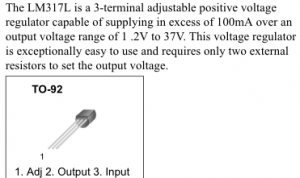

I chose to use the LM317 regulator as it seems to be a common regulator to use for small current devices. With the LM317 you can adjust the output voltage ranging from 1.2V to 37V by using 2 resistors on the adjust pin.

The primary use of this charger is to keep my 12V batteries topped up. From Wikipedia we find that voltage to keep batteries topped up is called the Continuous-preservation charge which is 13.2V.

Before we go and set the LM317 output voltage to 13.2V we need to include a diode on the output to protect the battery from supplying voltage to the LM317 when the sun isn’t shinning and it will also protect us against a short circuit between input and ground. Now because we have a diode on the output, we could easily add more batteries to keep topped up by adding a diode to each battery.

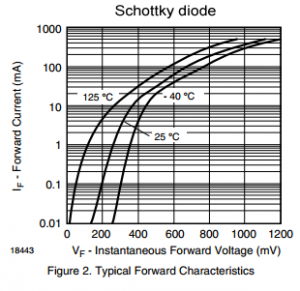

I chose a schottky BAT42 diode and you see a 0.15V drop at 3uA (tested) and then it increases to 0.7V at 100mA.

The output voltage of the LM317 will be 13.2V + 0.7V (worst case) = 13.9V. The LM317 has a drop out voltage of 1.75V @ 100mA so we require minimum input of 15.75V but we’ll round that up to 16V.

To calculate which resistors to use there is a LM317 Voltage Calculator website that can help us out.

The R1 common resistor value to use is 240ohms and the R2 value is 2429ohms which we can round up to a 2.43K resistor.

Now we just need to calculate the power dissipation, let’s say 20V is our maximum input, we drop to 13.2V. The drop on the regulator is 6.8V and say my solar panel outputs 80mA so it’s 0.544mW which is lower than the 625mW of the TO-92 package so we are all good.

Above is our schematic and PCB, download here: Simple_LM317_Solar_Charger_v1.0

After leaving a 12V car battery and a 12V sealed battery on for a 2-3days, it recharged the battery voltage to 12.35V which gives us about 75% capacity according to Wikipedia, so it seems to work good enough.
