Check out FlashCartDB.com where you can help populate flash carts to the Wiki! That’s where new supported flash carts will be listed.

If you have any problems writing to carts, please check this list:
– Make sure you are on the latest firmware and using the latest GBxCart software
– Try a different USB port (non-USB 3.0) or USB cable
– Make sure your PC hasn’t gone to sleep or woken up from sleep (give it a quick reboot)
– Try another computer



Supported Gameboy Flash Cart PCB Pictures

Catskull / DIY Carts – AM29F010B, SST39SF010A, AT49F040 – 32KByte
Audio pin or WR pin as WE.

SST39SF040 – 512KByte
Audio pin as WE.

ES29LV160 Flash – 1MByte
Requires 3.3V to erase/program.
PCB Text: 0883_DRV

Originally purchased as Tetris DX.
PCB Text: 16BIT_0883_32M

[Image courtesy of Brian N.]

Catskull / BV5 – 2MByte
PCB Text: SDO_BV5

M29W160EB – 2MByte
PCB Text: SD007_BV5_DRV

ES29LV160FT – 2MByte

AM29LV160DB – 2MByte
Requires 3.3V to erase/program. PCB Text: LJ3843-2

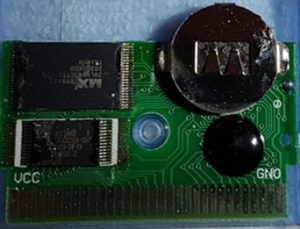

29LV160CTTC – 2MByte
Requires 3.3V to erase/program.

[Image courtesy of Stephan G.]

29LV160BTTC – 2MByte
Requires 3.3V to erase/program.

29LV160TE – 2MByte
Requires 3.3V to erase/program. Originally purchased as a Pokemon Red cart.
PCB Text: GB-M900

[Image courtesy of Bjoern B.]

S29GL032 – 2MByte
Requires 3.3V to erase/program.
PCB Text: GB-M968

[Image courtesy of Chris P.]

AM29F016B – 2MByte

                                                                         [Image courtesy of Davide I.]

M29W640 – 4MByte
Requires 3.3V to erase/program. Originally purchased as a “Shantae”. If you install a CR2032 coin cell battery, the battery will only last about 1 year as the cart consumes about 19uA for it’s data retention. You also need to change the solder bridge from “N” to “Y”.
PCB Text: SD007_48BALL-64M

29DL32BF – 4MByte
Requires 3.3V to erase/program.

GL032A10BAIR4 – 4MByte

[Image courtesy of Leo S.]

256M29 / M29W256 / MX29GL256 – 32 MByte (4x 8MB Banks)
Requires 3.3V to erase/program. You need change the solder bridge from the top left to the one a little bit lower (as shown). Battery current consumption is 4uA, so a CR2032 will last about 5-6 years. Originally purchased as a “22 in 1” Pokemon cart (yellow cartridge). It appears this cart may only support the MBC5/3 mapper as some MBC1 games have a corrupted title screen like Game & Watch Gallery and the original Zelda Link’s Awakening freezes when saving.

If using a Multi-game creator, you need to power cycle GBxCart RW when writing to a different 8MB Bank. Also make sure you place all rom files and menu file in the same folder.

Notes on the Multi-game creator by the user -DC-Tschisomat:
1. The Roms are not allowed to have more than 16 characters.
2. Only letters and numbers are displayed correctly in the menu.
3. Saving is possible for a maximum of 16 games
4. Only a maximum of 108 games may be written to the flash card, otherwise you will get a graphic error in the menu.
5. Every time you press Generate Compilation the Menu.gb file will be changed. So if you want to create a new MultiCard file you have to replace a fresh Menu.gb from downloaded Zip with the old one. Otherwise graphic error in the menu.

PCB Text: SD008-6810-V3

[Image courtesy of -DC-Tschisomat]

Nintendo 1MB Power Cart

GB Smart 16M – 2MByte

Supported Gameboy Advance Flash Cart PCB Pictures

MX29LV320 – 4MByte
PCB Text: insideGadgets

MSP55LV128 – 16MByte
PCB Text: AGB-E05-01

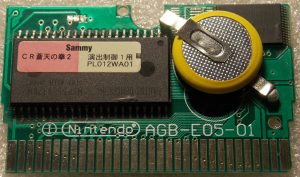

MSP55LV128M – 16MByte
PCB Text: AGB-E05-01

[Image courtesy of Jonas S]

29GL128EHMC – 16MByte
PCB: AGB-E08-09

[Image courtesy of Jonas S]

M29W128 – 16MByte

S29GL128 – 16MByte

[Image courtesy of PandaUnit-TWL]

29LV128DTMC – 16MByte
PCB: AGB-E08-09

MX29GL128ELT – 16MByte

M36L0R706 – 16MByte
PCB Text: 36LOR-DRV / AGB-E05-01

256M29EWH – 32MByte
PCB Text: PC28F256M29EW / AGB-E05-01

[Image courtesy of Jonas S]

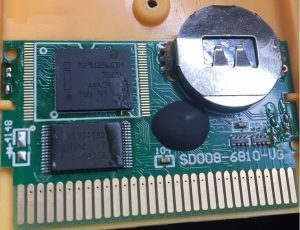

M29W256 – 32MByte
PCB Text: SD008-6810-V3

[Image courtesy of Mas H.]

256L30B – 32MByte
Use 256L30B (2) if the first option doesn’t write to your cart. It seems there is a little issue which prohibits writing to certain variants of this cart. Originally purchased as a “150 Games, NES Classic” transparent red cart.
PCB Text: 28F256L03B-DRV

4455LLZBQ0 / 4000L0YBQ0 – 32MByte

[Image courtesy of PandaUnit-TWL]
